Request for information or quotation?
If you need an ATEX-certified window air conditioner for Zone 2 or guidance selecting a compact unit, our team is happy to assist.

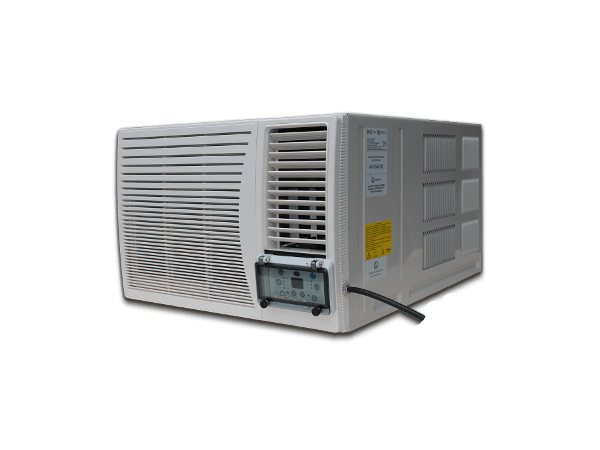

The window air conditioner AR-054 is an explosion-safe window-mounted air conditioner designed for use in Zone 2 hazardous areas that must be explosion proof. It provides reliable cooling in areas where gases or vapors may occasionally create an explosive atmosphere.
The AR-054 is certified under ATEX Directive 2014/34/EU (ATEX114), is CE marked, and designed for use in areas classified as Zone 2.
Common use cases
The window air conditioner AR-054 is commonly used in small enclosures or locations where space is limited.
Installation & configuration
The window air conditioner AR-054 fits directly into a window opening and does not require a refrigeration technician. Installation is quick, as the monoblock system is pre-filled with refrigerant.
Energy-efficient operation
The window air conditioner AR-054 uses DC inverter technology, meeting the Ecodesign efficiency standards of European Directive 2009/125/EC.
Compact window integration
It is the only explosion-safe air conditioner in the Artidor range designed specifically for window mounting, requiring no ceiling, rooftop, or external installation.
Share this page:
Features
- ATEX certified
- Complies to the European EdoDesign directive
- CE marked
- Explosion-safe for gasses and vapours
- Suitable for use in Zone 2
- DC inverter technology
- Cooling only
- Very compact, easy installation
- Environment friendly refrigerant R32
Technical properties
-
- Explosion safety:
- II 3 G Ex ec h ic mc IIB+H2 T3 Gc
-
- European directives:
- 2014/34/EU (ATEX 114), 2014/30/EU (EMC) and 2009/125/EC (EcoDesign)
-
- Applied standards:
- EN 14986:2017, EN 60079-0:2018, EN 60079-7:2015 / A1:2018, EN 60079-11:2012, EN 60079-18:2015 / A1:2017, EN 80079-36:2016 and EN 80079-37:2016
-
- Certification:
- EU Verklaring van Overeenstemming / Unit Assessment Certificaat
-
- Power supply:
- 230 V AC
-
- Mains frequency:
- 50 Hz
-
- Electrical connections:
- Fixed cable 3 x 2,5 mm², length 5 meter
-
- Ambient temperature:
- -20 °C to +45 °C
-
- Operational temperature:
- +18 °C to +43 °C
-
- Remote control:
- Infra-red remote control included
-
- Refrigerant:
- R32
Check out our other air conditioners

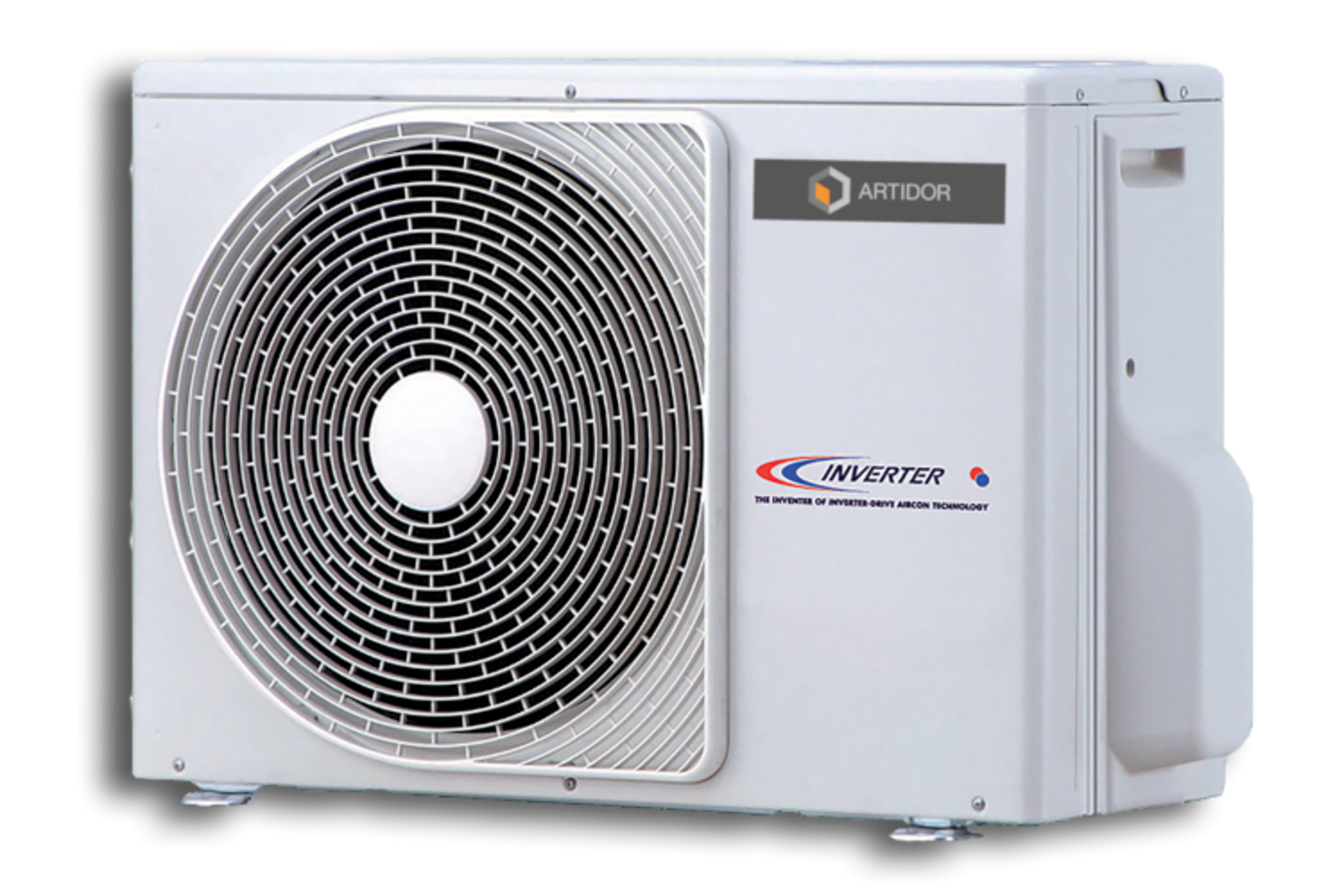

AR-051 Split systems (Toshiba)
Split systems for industrial 24/7 use, in robust, compact and corrosion-resistant executions.
Read more

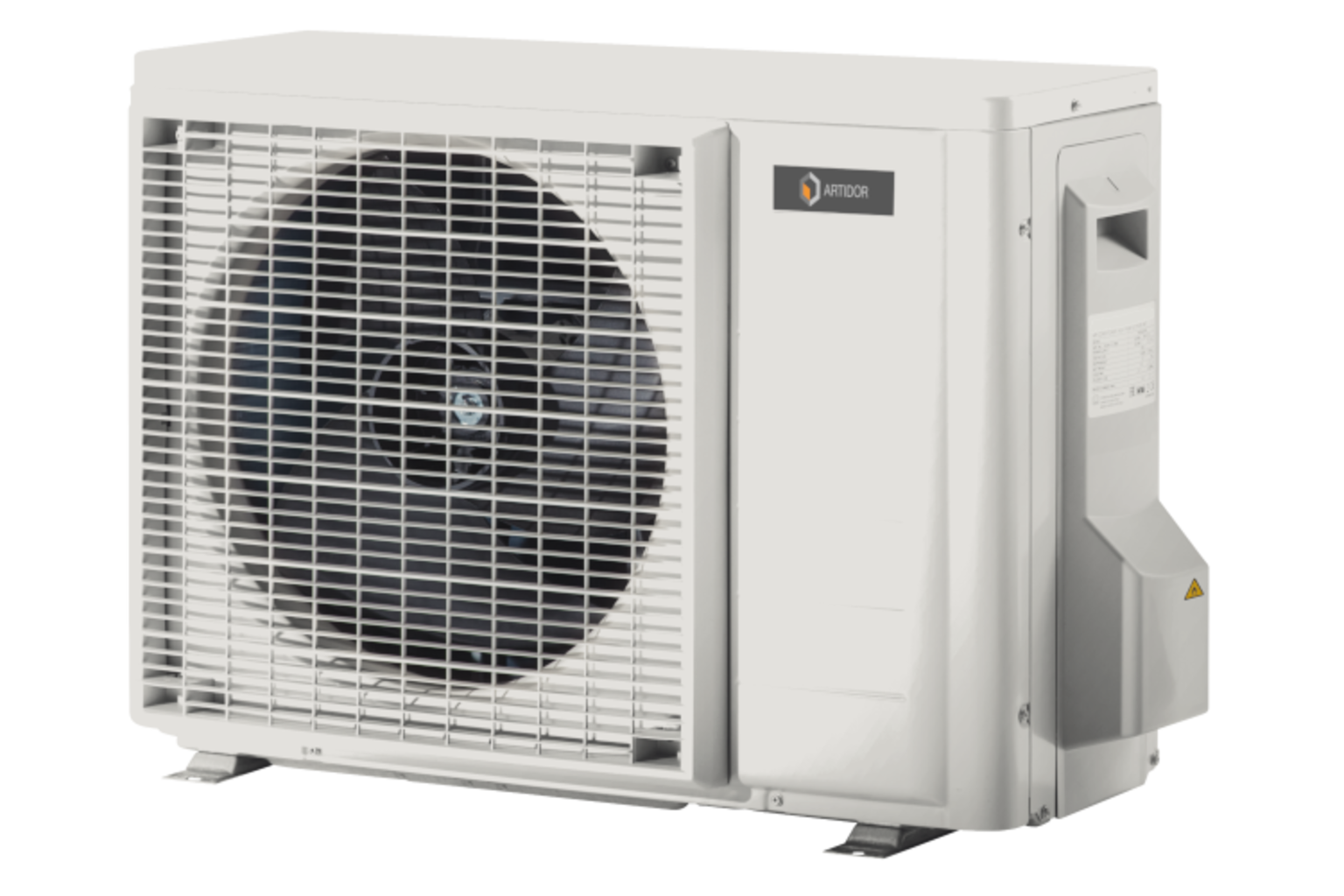

AR-052 Split systems (Daikin)
Split systems for industrial 24/7 use in robust and compact executions. Coating is optional.
Read more

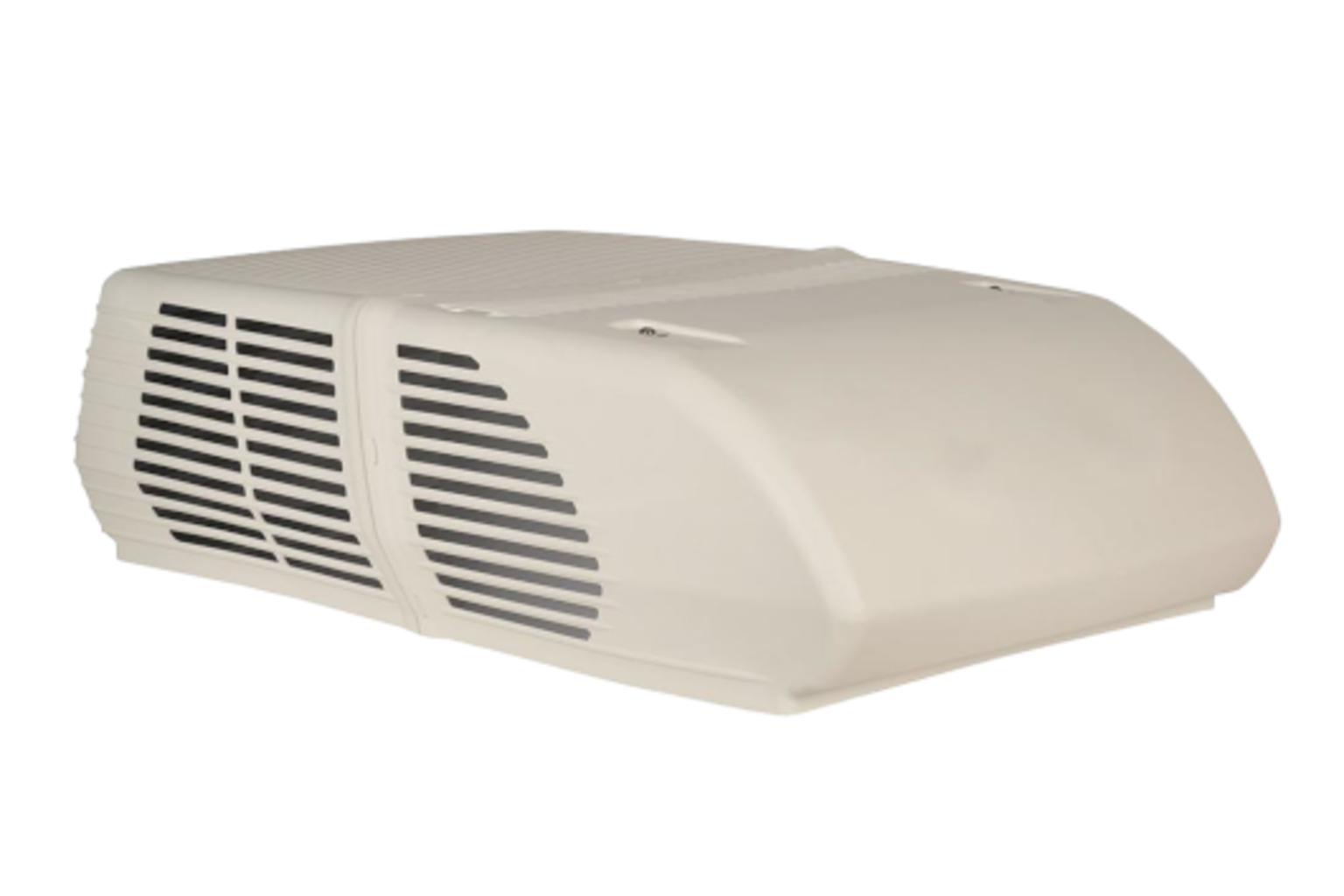

AR-053 Rooftop air conditioner
