Common use cases
The monoblock air conditioner AR-056 is commonly used in offices, laboratories, process containers, and chemical storage containers that must be explosion proof, where a compact indoor-only cooling solution is required.

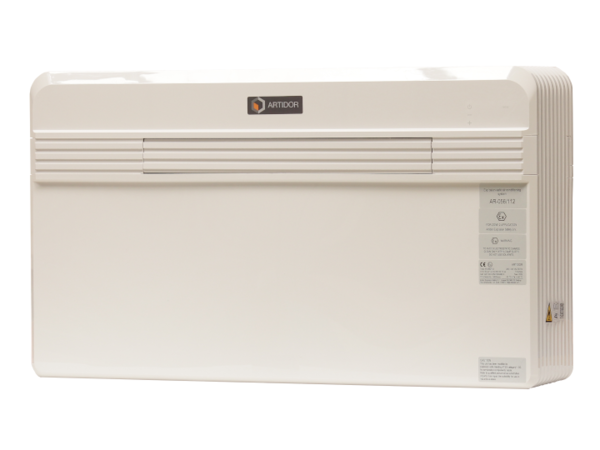

The AR-056 is an explosion-safe monoblock air conditioner designed to provide reliable climate control in areas where gas, vapor, or mist may occasionally create an explosive atmosphere.
The AR-056 is certified under ATEX Directive 2014/34/EU (ATEX114), is CE marked, and designed for use in areas classified as Zone 2.
Request for information or quotation?
For help selecting an ATEX-certified monoblock air conditioner or guidance on Zone 2 system requirements, our team is ready to support you.
Installation & configuration
Each monoblock air conditioner AR-056 is delivered pre-filled with refrigerant and requires no refrigeration specialist. Both mechanical and electrical installation are simple, and a mounting kit is included.

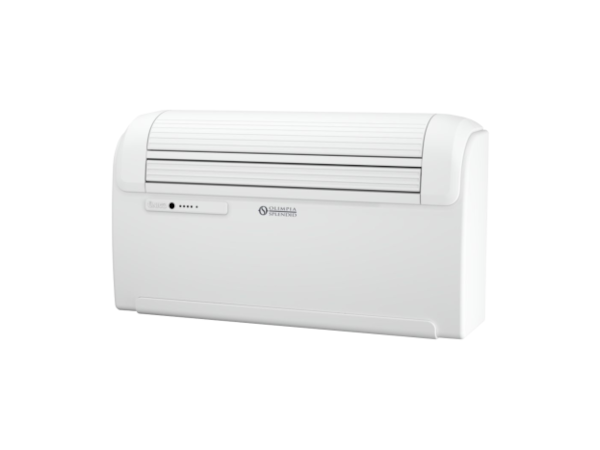

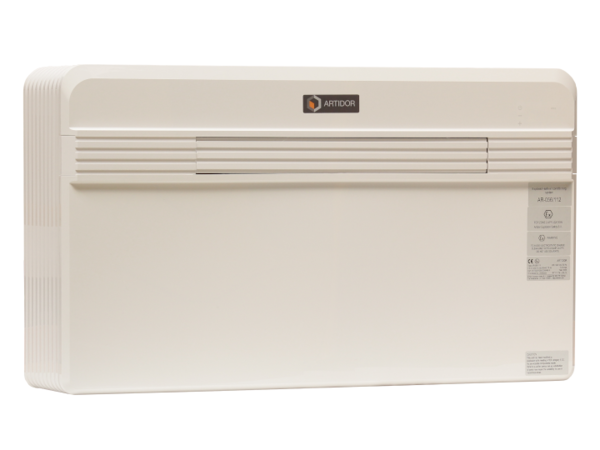

Indoor-only monoblock air conditioner

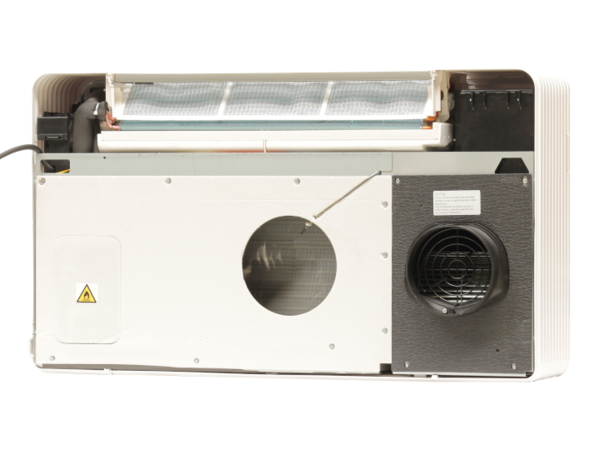

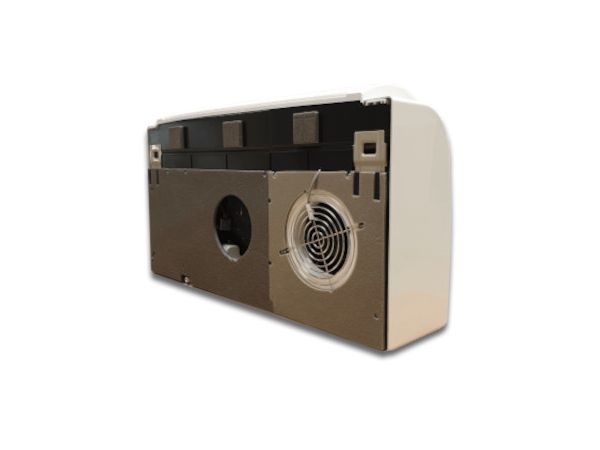

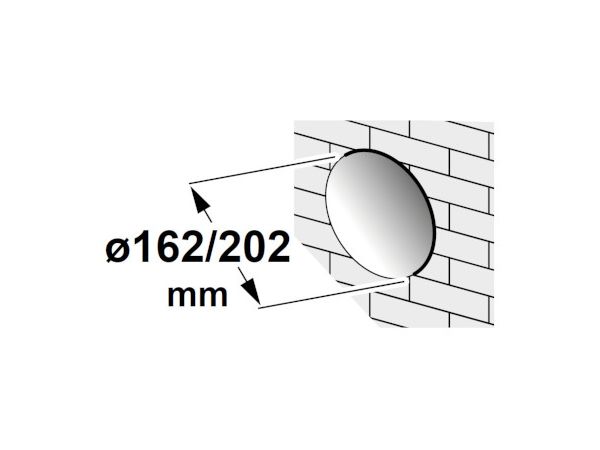

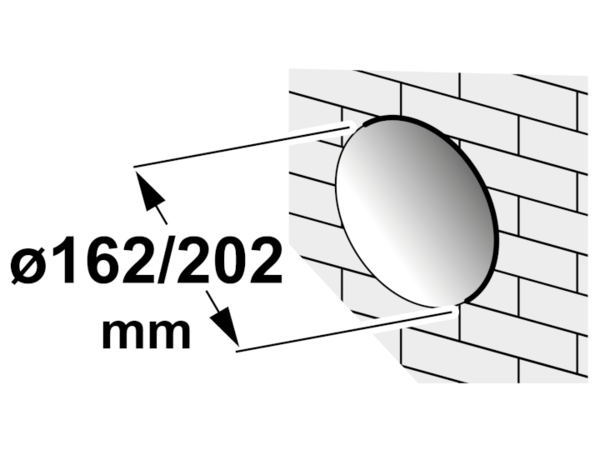

As a true monoblock system, all components are contained within a unit that is placed on the inside of a room. There are no components on the outside, making it ideal for spaces where external installation is restricted or impossible. Two wall openings are required to supply outside air for condenser cooling.
Indoor unit with compact installation footprint
The unit mounts on an interior wall and requires minimal clearance, allowing installation in tight or restricted spaces.
Share this page:
Features
- ATEX certified
- CE marked
- Suitable for environments classified as zone 2
- 3,1 kW cooling and 2,4 kW heating

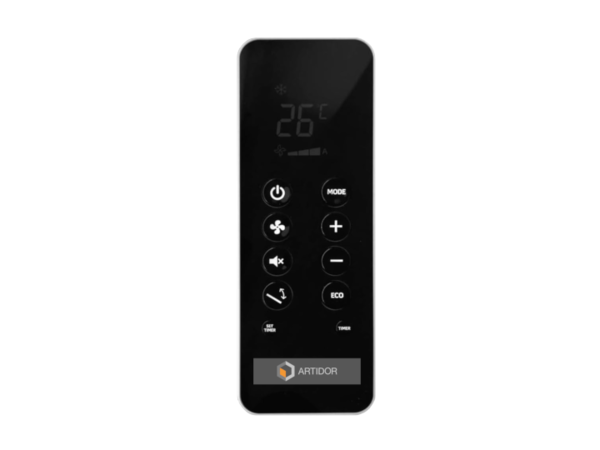

- With infrared remote control
- No outdoor unit required
- Very compact and easy to install
- Very quiet < 43 dB(A)
- Mounting kit included
- Refrigerant R32
Technical properties
-
- Explosion safety:
- II 3 G Ex ec h ic mc IIB+H2 T3 Gc
-
- European directives:
- 2014/34/EU (ATEX) 2014/30/EU (EMC)
-
- Applied standards:
- EN 14986:2017 EN 60079-0:2018 EN 60079-7:2015 / A1:2018 EN 60079-11:2012 EN 60079-18:2015 / A1:2017 EN 80079-36:2016 EN 80079-37:2016
-
- Certificate:
- EU Declaration of Conformity / Unit Assessment Certificate
-
- Cooling capacity:
- Cooling: 3.1 kW (10,600 BTU/h) Heating (nominal): 2.4 kW (8,200 BTU/h)
-
- Ambient temperature:
- Cooling: -20 °C … +43 °C Heating: -15 °C … +24 °C
-
- Dehumidification:
- 1.3 l/h
-
- Ventilation speeds:
- 350, 390 and 490 m³/h
-

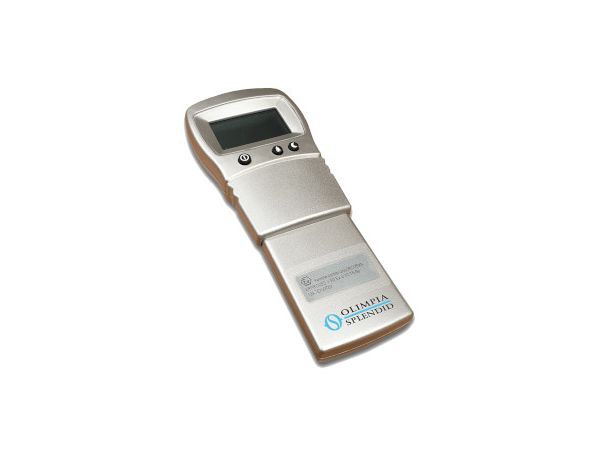

- Remote control:
- Infrared
-
- Power supply:
- 220 / 240 VAC, 50 Hz, 1 phase
-
- Electric power:
- 1.2 kW nominal, 1.5 kW maximum
-
- Power connection:
- Factory mounted H07RN-F cable, 3 x 1.5 mm², length 10 meter
-
- Weight:
- 39 kg
-
- Dimensions (W x H x D):
- 903 x 520 x 215 mm
-

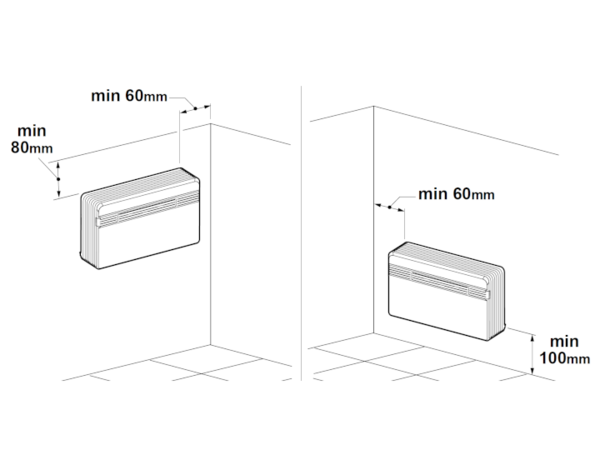

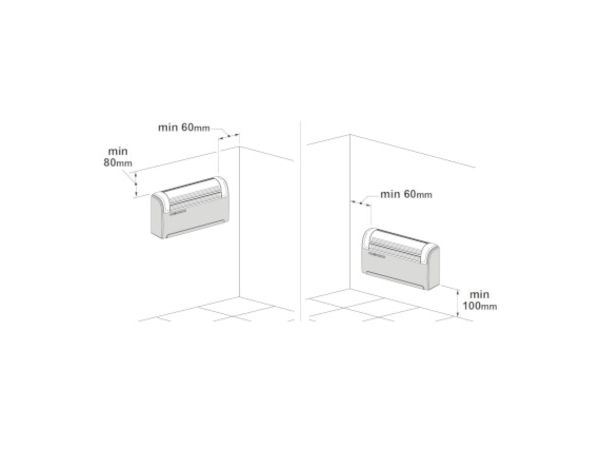

- Free space:
- Top side: 80 mm Down side: 100 mm Sides: 60 mm
-
- Refrigerant:
- R32
