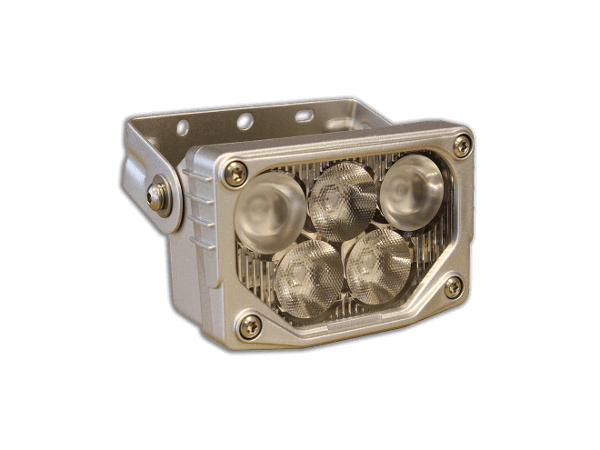

Artidor's AR-040 explosion-safe SpotLED combines high-performance and energy-efficiency with state-of-the-art LED technology, making it suitable for a wide range of applications. The robust SpotLED can successfully be applied on construction sites, transport vehicles, forklifts, lathes, or milling machines or for the illumination of facades.

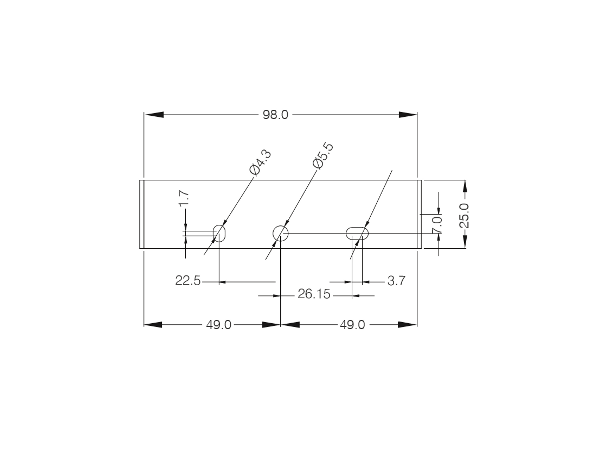

The SpotLED is available with LED optics with an angle of 10° (spotlight), 38° (wide-angle light), or a combination of both (work light). The cable has a standard length of 5 meters. Due to the stainless steel bracket and the large 155° rotation angle, the SpotLED is suitable for mounting against walls or sloping surfaces.
Artidor's AR-040 SpotLED is certified in accordance with European Directive 2014/34/EU (ATEX 114) for use in hazardous areas and is CE marked.
Share this page:
Features
- ATEX certified
- Suitable for use in gas and dust hazardous areas, classified as Zone 2 and 22
- Ingress protection level IP67
- Silver gray coated aluminum housing
- Stainless steel bracket, powder coated in the color of the housing
- Light source: 5 PowerLEDs, 3 Watts each
- 780 Lumen
- Various beam angles available
- Rotation angle from -50° to +105°
Technical properties
-
- Explosion safety
- II 3 G Ex ec IIC T4 GcII 3 D tc IIIC T135°C Dc
-
- Applicable European Directives
- 2014/34/EU (ATEX 114)2014/30/EU (EMC)
-
- CE conformity
- EN 60079-0:2018 EN 60079-7:2015 / A1:2018EN 60079-31:2014
-
- Power supply
- 12 - 30 V DC
-
- Power consumption
- 500 mA @ 24 V905 mA @ 12 V
-
- Light source
- Cree 3 Watt PowerLEDs (5x), 780 Lumen
-

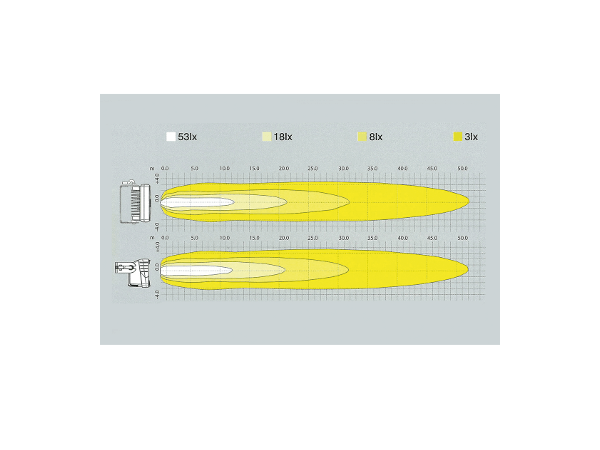

- Beam angles
- 10° - 38° (depending on the optics used)
-
- Light color
- Neutral white (~6700 K)
-
- Rotation angle
- -50° to +105°
-
- Material
- Die cast aluminum housing and stainless steel bracket, RAL 7001, silver gray Polycarbonate impact-resistant safety glass
-
- Ingress protection level
- IP67 according to EN 60529
-

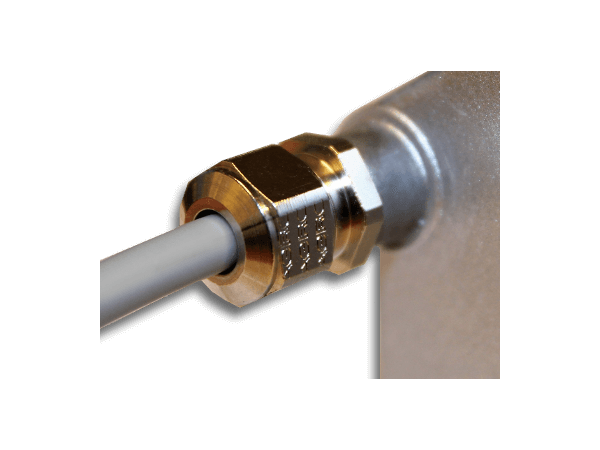

- Electrical connection
- Fixed cable, length 5 meters (brown = +24 VDC, white = 0 V, green = ground / earth)
-
- Ambient temperature
- -30 °C to +50 °C
-

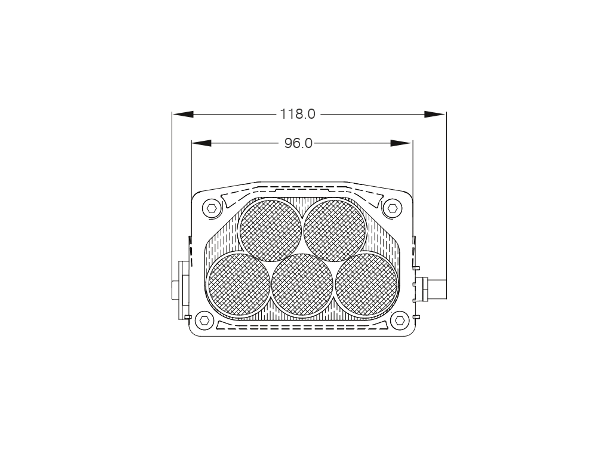

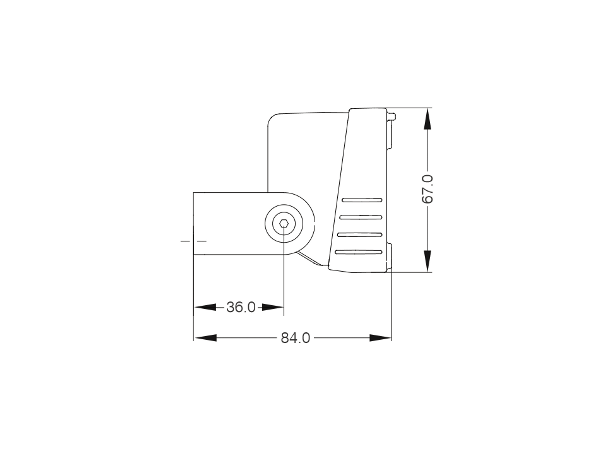

- Dimensions
- 120 x 62 x 87 mm
-
- Weight
- 540 gram
